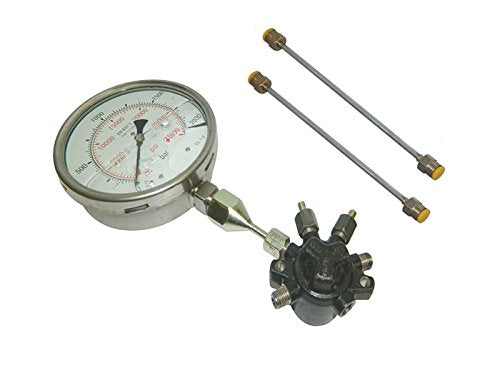

COMMON FUEL RAIL WITH 2000 BAR HIGH PRESSURE GAUGE & HI PRESSURE PIPES

Complete with High pressure pipes, rail outlet closing adapters and High pressure gauge special adapter. To be used directly on Common rail engines at site on Car / Truck, or can be used on Diesel pump test benches for monitoring system / rail pressure. Pressure gauge description: Heavy duty, Stainless steel body, 6 inch Dial, Glycerin filled, Dual Scale High pressure Gauge with ranges 0 - 2000 BAR and 0 - 30000 PSI. The Gauge also comes fitted with the special rail - pressure gauge adapter. The gauge is used to constantly monitor the system / rail pressure. The spherical Delphi fuel rail has 1 inlet port for connection from the high pressure common rail pump to the fuel rail and 4 outlet ports to connect to up to 4 Common rail injectors simultaneously. The dimensions of the 2 H.P. pipes supplied are: Length - 500 mm (1 X M12 - M12 nuts & 1 X M12 - M14 nuts) Delphi Spherical Fuel Rail fitted with a High Pressure Gauge - 2000 Bar / PSI.
