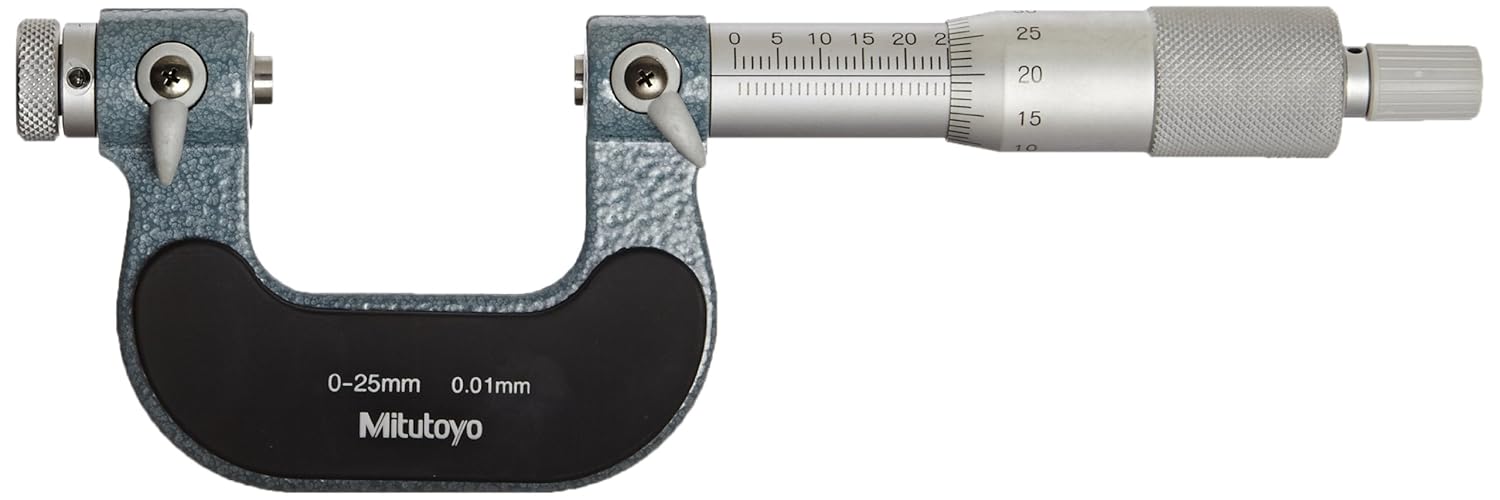

Mitutoyo 126-125 Screw Thread Micrometer, Interchangeable Anvil-Spindle Tip, Ratchet Stop, 0-25mm Range, 0.01mm Graduation, +/-0.004mm Accuracy

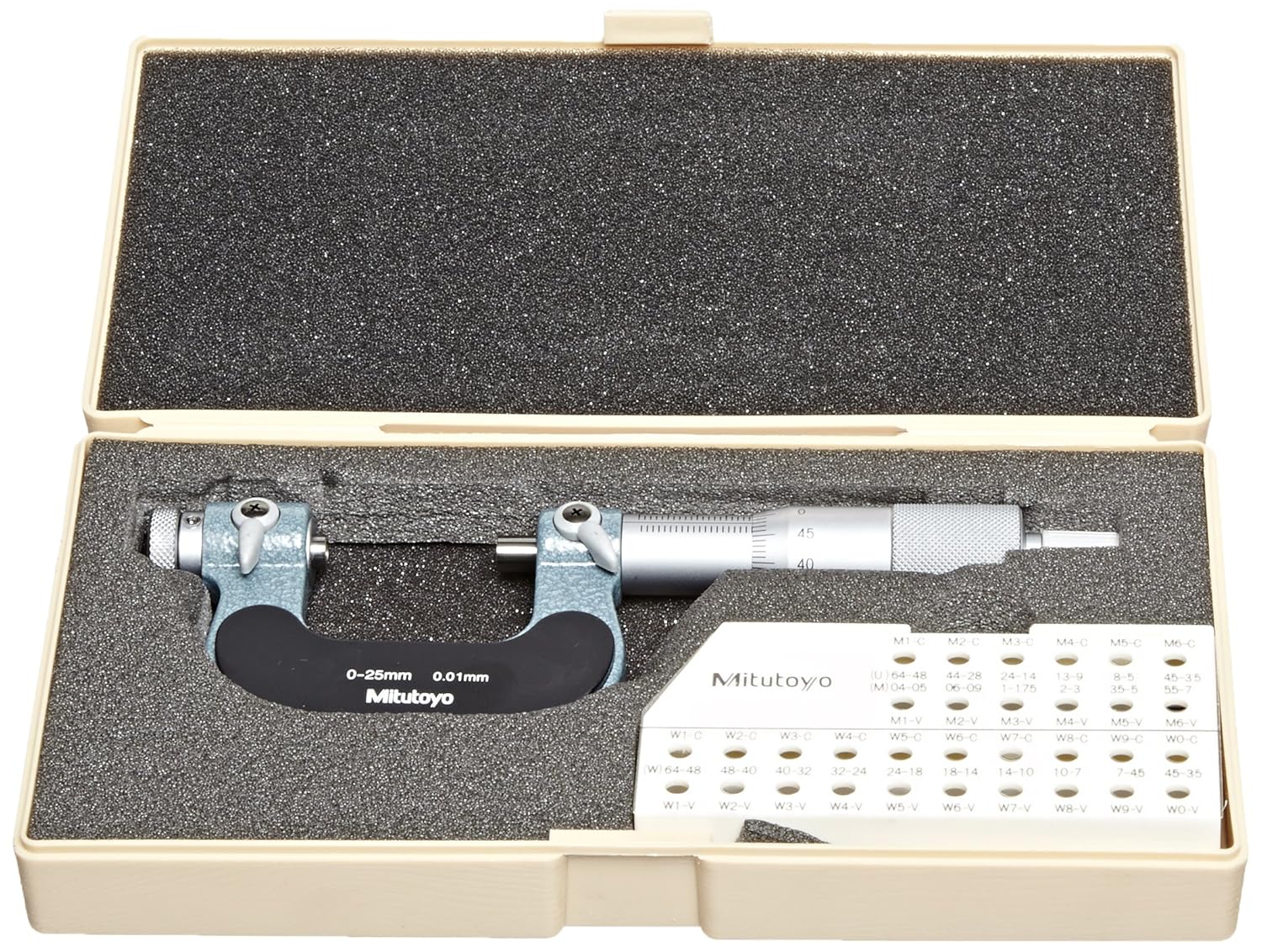

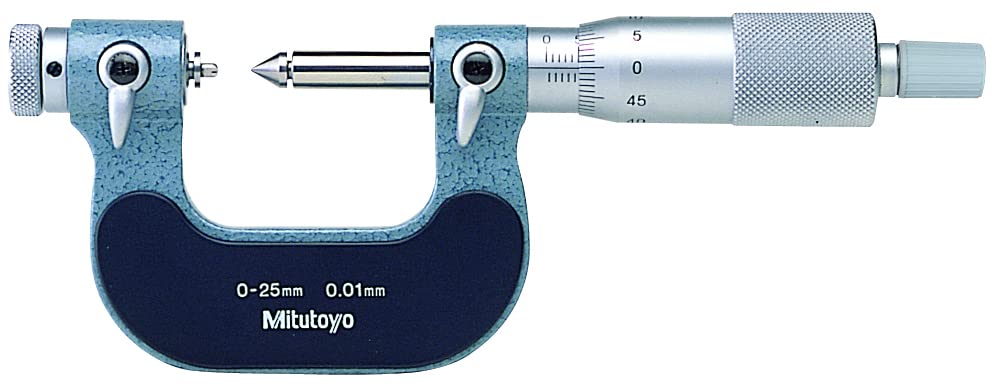

The Mitutoyo 126 series screw thread micrometer is for use with V-anvil and conical spindle inserts for measuring pitch diameters of screw threads (sold separately). It also has a vernier scale in metric units for taking precise outside diameter (OD) measurements, and a ratchet-stop mechanism to help provide uniform pressure for precise, repeatable measurement during adjustment. The micrometer’s frame has a Hammertone, baked enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.01mm, and a satin chrome rust- and glare-resistant finish. The micrometer’s ratchet-stop mechanism helps provide uniform pressure during adjustment for precise, repeatable measurement. A spindle lock helps provide secure locking of the measurement position, while the anvil holder has a fine screw adjustment and locking device. The micrometer comes with a plastic case for storage. Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot. Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL. For use with V-anvil and conical spindle inserts for measuring pitch diameters of screw threads (sold separately) Vernier scale in metric units for taking precise outside diameter (OD) measurements Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurement Satin chrome finish on thimble and sleeve helps resist rust and reduce glare Hammertone, baked enamel finish for protection and durability of frame
