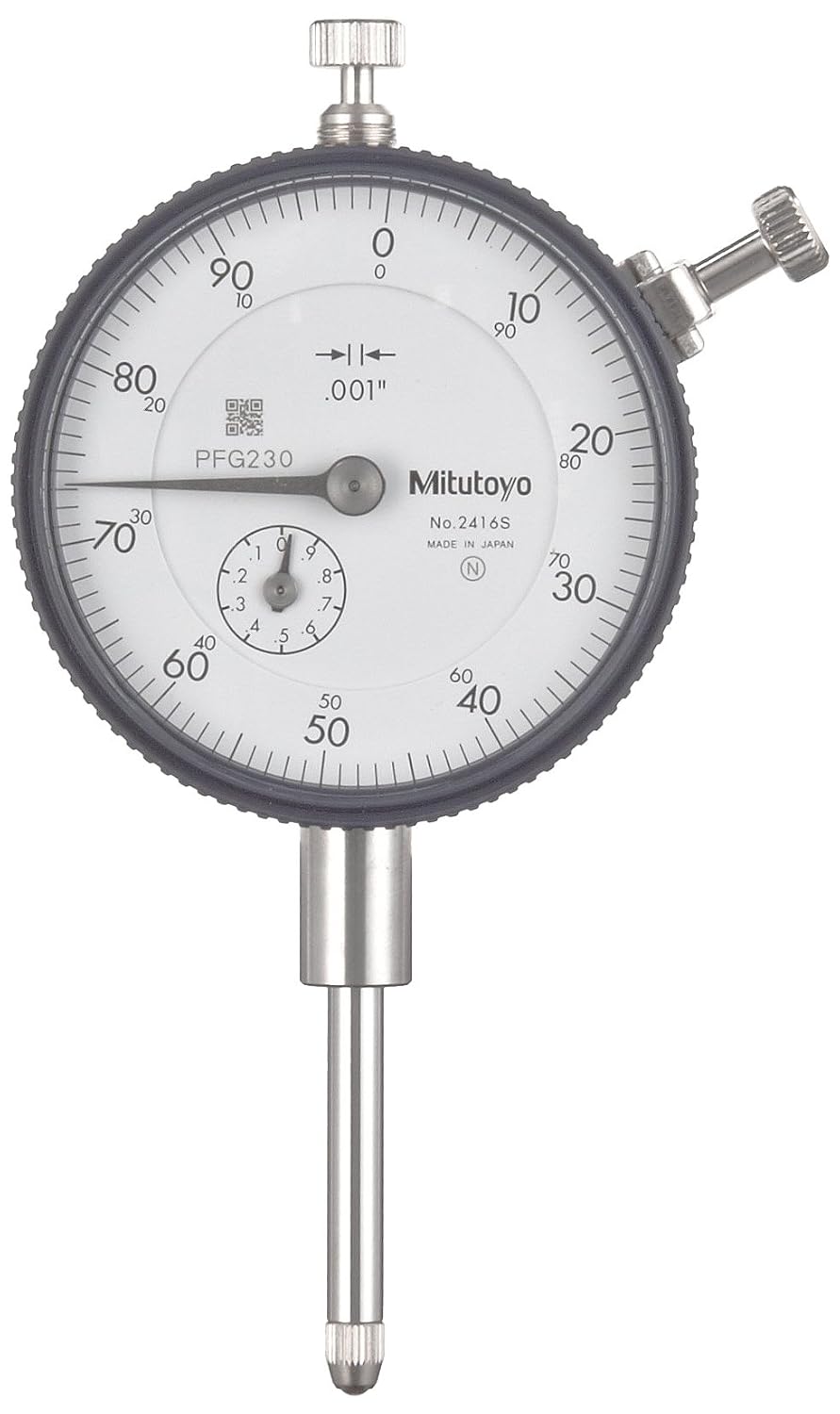

Mitutoyo 2416SBCAL Dial Indicator with Calibration, 4-48 UNF Thread, 3/8" Stem Dia., Lug Back, White Dial, 0-100 Reading, 57mm Dial Dia., 0-1" Range, 0.001" Graduations, -0.002" Accuracy

The calibrated Mitutoyo 2416SCAL dial indicator is used to measure surface variations in fractional inches. It has a measurement range of 0 to 1", graduations of 0.001", an accuracy of + or - 0.002", and a range per revolution of 0.1". The white dial and a contrasting hand help make measurements easy to read. The stem design provides a long clamping range, there are no through screw-holes on the frame for dust- and water resistance, and it has a lug back for mounting from the rear of the indicator. This dial indicator meets ANSI standards, Japanese Industrial Standard (JIS) B7503-1997, and American Gage Design (AGD) standards for face and thread size, and bezel and stem diameter. Mitutoyo calibrated tools include a Certificate of Calibration that provides evidence that the tool has been calibrated and is within allowable error specifications. Mitutoyo calibrated tools are certified by Mitutoyo's American Association for Laboratory Accreditation-accredited calibration laboratory (A2LA Certificate #750-01) to the International Organization for Standardization/International Electrotechnical Commission (ISO/IEC) 17025 International Standard for testing and calibration laboratories. This unit has a 3/8" diameter stem and a #4-48 UNF contact point thread mount. This dial indicator has a jeweled bearing type. This model is a continuous dial with a reading of 0-100, for direct readings. It has a force of 1.8 Newtons (N) or less. SpecificationsRange0 to 1"Graduations0.001"Accuracy+ or – 0.002" (overall)Range per revolution0.1"Measuring force1.8N or lessStem#4-48UNF contact point thread mount with 3/8" diameter spindleFaceDial, white face, jeweled bearing, lug backDial reading0-100Dimensions115.7 x 57 x 25.3mm (H x W x D), not including lugShipping weight0.57lb.StandardsANSI, JIS B7503-1997, and AGD H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Dial indicators are also called dial gauges, probe, and electronic indicators. These precision instruments measure small linear distances and object sizes. The dial magnifies the measurement so that it can be easily read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Dial and dial test indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation. Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL. What's in the Box? Mitutoyo 2416SCAL dial indicator Certificate of Calibration
